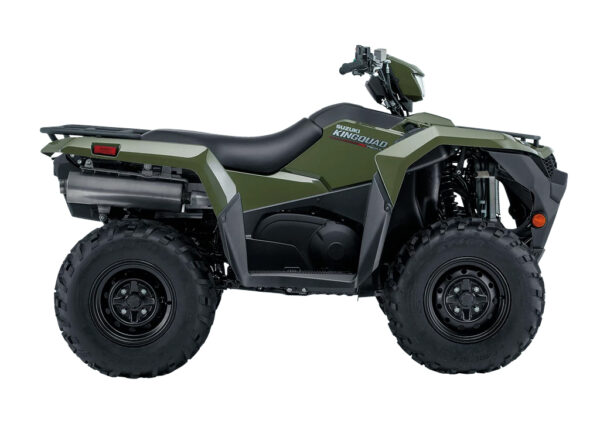

KingQuad 500X

£10,679.00

Make an Enquiry Part Exchange Enquiry Request a Video Reserve This Bike Online

KingQuad 500X Promotions


Model Description


King of Quads

The most innovative and exciting Suzuki ATVs to date, the new KingQuad 500 is the new King of Quads. Built tough for every ride, this new models achieves a higher level of balance between practical use and leisure riding. The new edgy new styling and leading technology are the result of 40 years of engineering expertise, and boast a huge variety of new features.

With 4-wheel drive, fully independent suspension and an advanced engine braking system, it has true off-road capability (model shown may vary from UK specification).

Available in Terra Green and Flame Red

Model Specification


  • Dimensions

    Overall Length

    2150mm (84.6in)

    Overall Width

    1215mm (47.8in)

    Overall Height

    1285mm (50.6in)

    Wheelbase

    1285mm (50.6in)

    Ground clearance

    260mm (10.2in)

    Seat Height

    920mm (36.2in)

    Kerb mass

    315.0kg

    Fuel capacity

    17.5 litres (3.8 UK gallons)

  • Engine

    Engine capacity

    493cc

    Engine

    4-stroke, single-cylinder, liquid-cooled, DOHC

    Bore

    104.0mm

    Compression ratio

    9.9:1

    Ignition

    Electronic ignition

    Lubrication

    Wet sump

    Fuel system

    Fuel Injection

    Transmission

    Automatic variable ratio (V-belt)

    Starter

    Electric

  • Frame

    Front suspension

    Independent, double wishbone, oil-damped

    Rear suspension

    Independent, double wishbone, oil-damped

    Front brakes

    Dual Discs, hydraulically operated

    Rear brakes

    Sealed oil-bathed multi-disc

    Front tyres

    AT25 x 8-12, tubeless

    Rear tyres

    AT25 x 10-12, tubeless
